Description

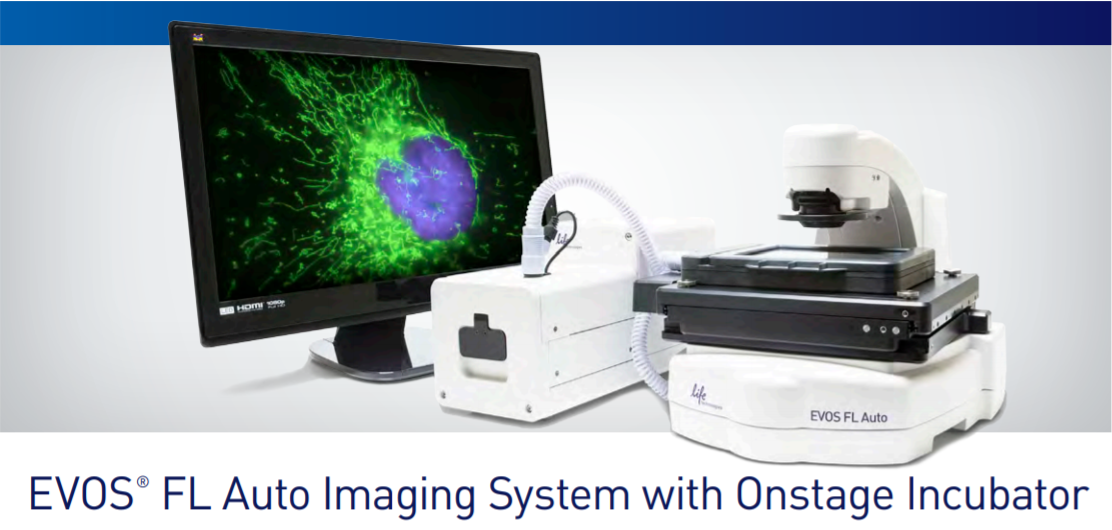

The EVOS inverted microscope system is equipped with an onstage incubator for environmental control and can accommodate multi-well plates and standard round culture dishes as well as slides. The fluorescent/widefield system is capable of z stage movement and tiling. Phase corrected objectives include 4xPH, 10xPH, 20xL PH, 40xL PH as well as a 60x 1.42NA oil lens for higher resolution imaging. Four LED light cubes are available to cover the standard DAPI, GFP, RFP and Cy5 wavelengths.
Techniques
- Cell counting
- Live-cell imaging
- Tiling
- Transmitted/color
- phase and fluorescent imaging
Documents and manuals
Rates
| Service or material | ASU rate | Nonprofit or academic rate | Notes |
|---|---|---|---|
| Unassisted use | $6/hour | $11/hour | |
| Technical assistance | $62/hour | $90/hour | |
| Materials: frosted glass slides | $10/box | $10/box | Double frosted micro slides used in various microscopy applications. A box includes 72 slides measuring 3” x 1”. |
Image Gallery
