Description

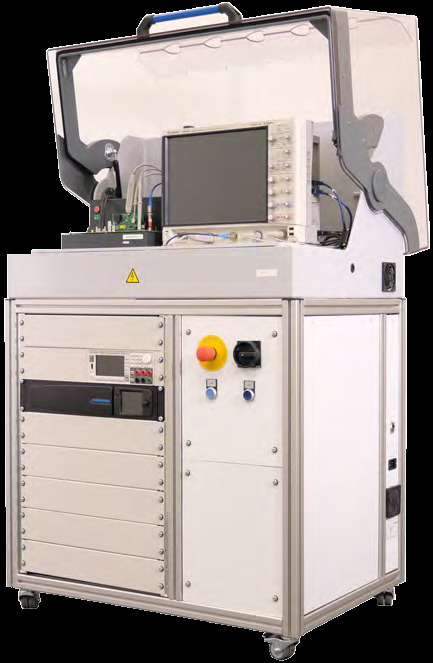

The Keysight PD1500A dynamic power device analyzer utilizes the Double Pulse Test (DPT) technique to characterize wide bandgap semiconductors. Some characteristics of the instrument include:
- Characterize 600 V, 1.2 kV, and 1.7 kV rated discrete devices.
- ID/IC up to 200 A.
- Fast slew rate, high bandwidth measurement probes.
Techniques
- Electrical I-V characterization for wide-bandgap semiconductor devices
- Titration
Documents and manuals
Rates
| Service or material | ASU rate | Nonprofit or academic rate | Notes |
|---|---|---|---|
| Equipment Use | $44/hr | $55/hr | Instrument available for discrete packaged device testing |
