Description
The Quadrupole ICP-MS (iCap-Q) is used for rapid, precise and accurate trace (<1000 ppm) element determinations in liquid and solid samples, isotopic determinations, and speciation studies. The iCap-Q features a stable plasma source capable of ionizing most elements of the periodic table, an interface system to transfer ions from the high temperature (6000-10,000°K- atmospheric pressure (760 torr) environment of the Ar plasma into the mass spectrometer analyzer region at room temperature and low pressure (10-5 torr), technology to remove interferences, and an autosampler is capable of handling 240 15- ml samples at a time.
Techniques

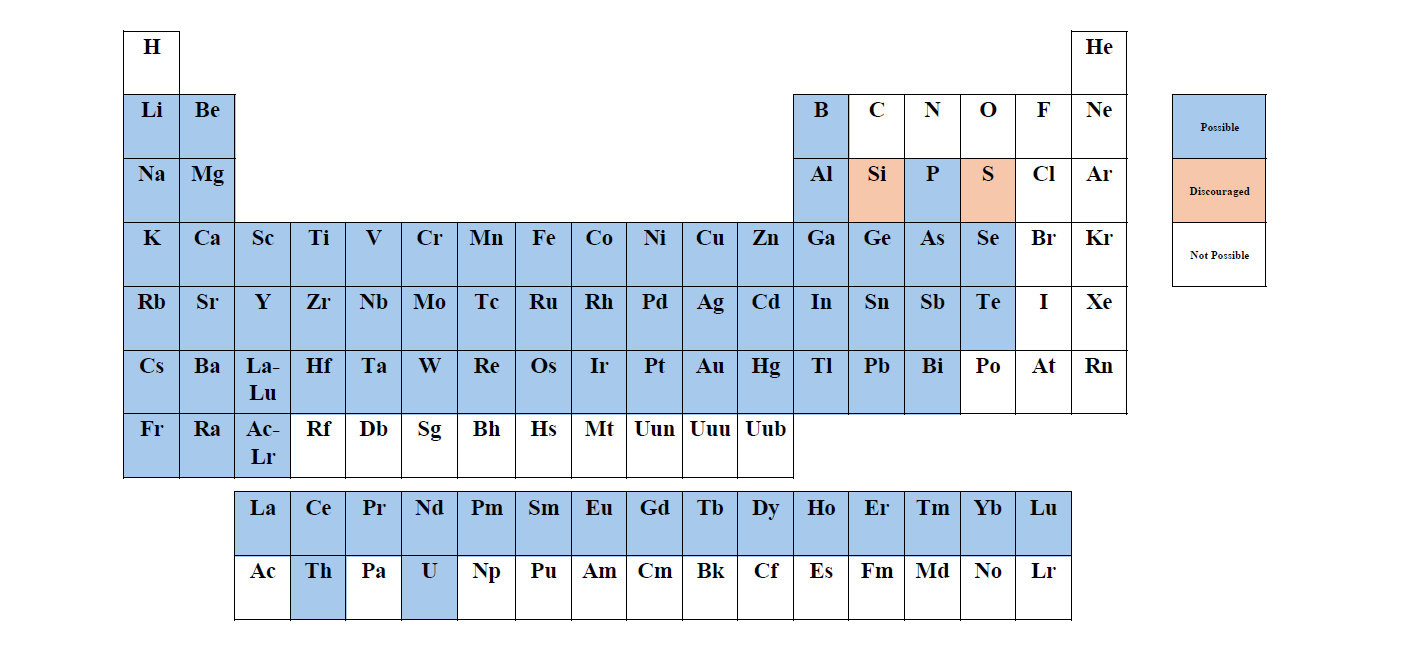

- Concentration of metals, REE, some major elements in a wide variety of sample types and over a large dynamic range
ASU Unit
Knowledge Enterprise
Rates
| Service | ASU rate | Nonprofit/other academic rate | Notes |
|---|---|---|---|
| Equipment setup | $74.90/session | $96.30/session | |
| ICP-MS analysis, <60 samples | $13.20/sample | $18.20/sample | |
| ICP-MS analysis, >60 samples, or <3 elements | $9.20/sample | $12.80/sample | |
| ICP-MS analysis, custom element list or difficult samples | $17.10/sample | $34.80/sample |
Photos
